1. Product Principles and Crystal Chemistry
1.1 Make-up and Polymorphic Structure
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its remarkable solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures varying in stacking sequences– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technologically appropriate.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) result in a high melting point (~ 2700 ° C), reduced thermal development (~ 4.0 × 10 ⁻⁶/ K), and outstanding resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC does not have an indigenous lustrous phase, adding to its stability in oxidizing and harsh environments approximately 1600 ° C.
Its wide bandgap (2.3– 3.3 eV, depending upon polytype) likewise grants it with semiconductor homes, allowing dual usage in structural and digital applications.
1.2 Sintering Challenges and Densification Techniques
Pure SiC is exceptionally tough to compress due to its covalent bonding and reduced self-diffusion coefficients, necessitating using sintering aids or sophisticated processing strategies.
Reaction-bonded SiC (RB-SiC) is produced by infiltrating porous carbon preforms with molten silicon, creating SiC in situ; this approach yields near-net-shape parts with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) makes use of boron and carbon ingredients to promote densification at ~ 2000– 2200 ° C under inert ambience, accomplishing > 99% academic density and premium mechanical residential or commercial properties.
Liquid-phase sintered SiC (LPS-SiC) uses oxide ingredients such as Al ₂ O FOUR– Y TWO O ₃, creating a transient liquid that improves diffusion but may lower high-temperature toughness because of grain-boundary phases.
Hot pushing and trigger plasma sintering (SPS) use rapid, pressure-assisted densification with fine microstructures, suitable for high-performance parts calling for marginal grain growth.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Strength, Solidity, and Put On Resistance
Silicon carbide ceramics exhibit Vickers firmness values of 25– 30 Grade point average, 2nd only to ruby and cubic boron nitride among design materials.
Their flexural strength usually ranges from 300 to 600 MPa, with fracture strength (K_IC) of 3– 5 MPa · m ONE/ TWO– modest for ceramics yet improved through microstructural design such as hair or fiber support.
The mix of high hardness and elastic modulus (~ 410 GPa) makes SiC extremely immune to abrasive and abrasive wear, outmatching tungsten carbide and solidified steel in slurry and particle-laden settings.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC components show service lives a number of times much longer than traditional options.
Its low thickness (~ 3.1 g/cm FIVE) additional contributes to put on resistance by minimizing inertial pressures in high-speed revolving parts.
2.2 Thermal Conductivity and Stability
One of SiC’s most distinguishing attributes is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline kinds, and as much as 490 W/(m · K) for single-crystal 4H-SiC– surpassing most steels except copper and aluminum.
This residential property makes it possible for reliable heat dissipation in high-power electronic substratums, brake discs, and warmth exchanger components.
Coupled with reduced thermal expansion, SiC exhibits outstanding thermal shock resistance, quantified by the R-parameter (σ(1– ν)k/ αE), where high values indicate strength to fast temperature level modifications.

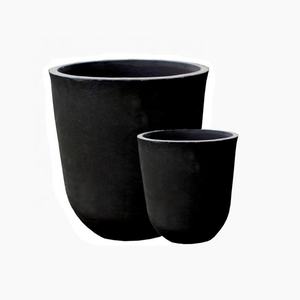

As an example, SiC crucibles can be heated up from area temperature to 1400 ° C in minutes without cracking, a task unattainable for alumina or zirconia in similar conditions.
Additionally, SiC preserves strength up to 1400 ° C in inert environments, making it ideal for furnace fixtures, kiln furniture, and aerospace components revealed to extreme thermal cycles.
3. Chemical Inertness and Corrosion Resistance
3.1 Habits in Oxidizing and Decreasing Ambiences
At temperatures below 800 ° C, SiC is very secure in both oxidizing and lowering settings.
Above 800 ° C in air, a safety silica (SiO TWO) layer kinds on the surface area via oxidation (SiC + 3/2 O ₂ → SiO TWO + CO), which passivates the product and slows more destruction.
Nonetheless, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)₄, causing sped up economic crisis– a vital factor to consider in turbine and burning applications.
In decreasing atmospheres or inert gases, SiC stays stable as much as its decay temperature (~ 2700 ° C), without any stage modifications or strength loss.
This security makes it suitable for molten steel handling, such as light weight aluminum or zinc crucibles, where it stands up to wetting and chemical strike far better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is virtually inert to all acids except hydrofluoric acid (HF) and strong oxidizing acid mixes (e.g., HF– HNO ₃).
It shows superb resistance to alkalis up to 800 ° C, though extended exposure to molten NaOH or KOH can cause surface etching through formation of soluble silicates.
In molten salt environments– such as those in concentrated solar power (CSP) or nuclear reactors– SiC demonstrates exceptional deterioration resistance contrasted to nickel-based superalloys.
This chemical toughness underpins its usage in chemical procedure equipment, including valves, linings, and heat exchanger tubes managing aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Arising Frontiers
4.1 Established Uses in Power, Protection, and Production
Silicon carbide ceramics are indispensable to various high-value industrial systems.
In the energy industry, they act as wear-resistant linings in coal gasifiers, components in nuclear fuel cladding (SiC/SiC compounds), and substratums for high-temperature solid oxide gas cells (SOFCs).
Defense applications consist of ballistic armor plates, where SiC’s high hardness-to-density ratio provides remarkable defense against high-velocity projectiles contrasted to alumina or boron carbide at reduced expense.
In manufacturing, SiC is made use of for accuracy bearings, semiconductor wafer dealing with parts, and abrasive blowing up nozzles because of its dimensional stability and pureness.
Its usage in electrical lorry (EV) inverters as a semiconductor substratum is quickly expanding, driven by efficiency gains from wide-bandgap electronics.
4.2 Next-Generation Dopes and Sustainability
Ongoing research focuses on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which exhibit pseudo-ductile behavior, improved sturdiness, and preserved stamina above 1200 ° C– ideal for jet engines and hypersonic automobile leading sides.
Additive manufacturing of SiC via binder jetting or stereolithography is advancing, making it possible for complicated geometries formerly unattainable through standard developing methods.
From a sustainability perspective, SiC’s longevity lowers substitute frequency and lifecycle emissions in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being created with thermal and chemical recovery procedures to recover high-purity SiC powder.
As markets press toward greater performance, electrification, and extreme-environment procedure, silicon carbide-based ceramics will certainly remain at the center of innovative materials design, connecting the void in between architectural resilience and useful versatility.
