1. Product Principles and Microstructural Characteristics
1.1 Structure and Crystallographic Quality of Al ₂ O FIVE
(Alumina Ceramic Balls， Alumina Ceramic Balls)

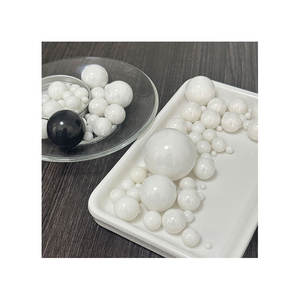

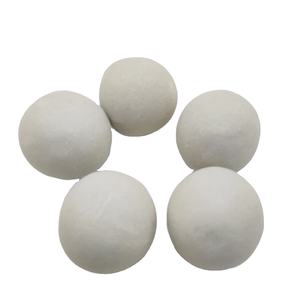

Alumina ceramic spheres are round elements produced from aluminum oxide (Al two O THREE), a fully oxidized, polycrystalline ceramic that displays extraordinary firmness, chemical inertness, and thermal stability.
The key crystalline stage in high-performance alumina balls is α-alumina, which embraces a corundum-type hexagonal close-packed framework where light weight aluminum ions inhabit two-thirds of the octahedral interstices within an oxygen anion latticework, providing high lattice energy and resistance to phase transformation.
Industrial-grade alumina spheres generally contain 85% to 99.9% Al Two O THREE, with pureness straight influencing mechanical stamina, wear resistance, and deterioration performance.
High-purity grades (≥ 95% Al ₂ O FOUR) are sintered to near-theoretical thickness (> 99%) using innovative methods such as pressureless sintering or warm isostatic pressing, decreasing porosity and intergranular defects that can function as tension concentrators.
The resulting microstructure includes penalty, equiaxed grains uniformly distributed throughout the volume, with grain dimensions typically ranging from 1 to 5 micrometers, maximized to stabilize sturdiness and firmness.
1.2 Mechanical and Physical Building Account
Alumina ceramic rounds are renowned for their extreme firmness– measured at roughly 1800– 2000 HV on the Vickers scale– going beyond most steels and equaling tungsten carbide, making them perfect for wear-intensive settings.
Their high compressive strength (up to 2500 MPa) makes certain dimensional security under lots, while reduced elastic deformation enhances precision in rolling and grinding applications.
Despite their brittleness relative to metals, alumina spheres exhibit excellent crack strength for ceramics, specifically when grain growth is controlled throughout sintering.
They keep architectural integrity throughout a broad temperature level array, from cryogenic conditions up to 1600 ° C in oxidizing ambiences, far going beyond the thermal restrictions of polymer or steel equivalents.
Furthermore, their reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) reduces thermal shock susceptibility, allowing usage in rapidly changing thermal environments such as kilns and warmth exchangers.
2. Production Processes and Quality Assurance
()
2.1 Shaping and Sintering Techniques
The production of alumina ceramic spheres starts with high-purity alumina powder, frequently originated from calcined bauxite or chemically precipitated hydrates, which is grated to accomplish submicron bit dimension and slim dimension distribution.
Powders are after that developed into round eco-friendly bodies using approaches such as extrusion-spheronization, spray drying out, or sphere creating in rotating pans, depending upon the preferred size and batch range.
After forming, environment-friendly rounds go through a binder exhaustion phase complied with by high-temperature sintering, generally in between 1500 ° C and 1700 ° C, where diffusion systems drive densification and grain coarsening.
Exact control of sintering atmosphere (air or controlled oxygen partial pressure), home heating price, and dwell time is important to achieving consistent contraction, round geometry, and marginal interior issues.
For ultra-high-performance applications, post-sintering treatments such as hot isostatic pressing (HIP) might be put on eliminate recurring microporosity and additionally enhance mechanical reliability.
2.2 Precision Finishing and Metrological Confirmation
Adhering to sintering, alumina rounds are ground and polished using diamond-impregnated media to achieve limited dimensional tolerances and surface area finishes equivalent to bearing-grade steel spheres.
Surface roughness is generally minimized to less than 0.05 μm Ra, decreasing friction and wear in vibrant get in touch with situations.
Vital quality specifications consist of sphericity (variance from excellent satiation), diameter variation, surface stability, and density uniformity, all of which are determined using optical interferometry, coordinate measuring machines (CMM), and laser profilometry.
International requirements such as ISO 3290 and ANSI/ABMA define tolerance qualities for ceramic rounds used in bearings, making sure interchangeability and efficiency uniformity throughout manufacturers.
Non-destructive screening methods like ultrasonic assessment or X-ray microtomography are employed to spot inner fractures, gaps, or additions that could compromise long-term dependability.
3. Practical Benefits Over Metal and Polymer Counterparts
3.1 Chemical and Corrosion Resistance in Harsh Environments
One of the most substantial advantages of alumina ceramic balls is their superior resistance to chemical assault.
They stay inert in the presence of strong acids (except hydrofluoric acid), antacid, natural solvents, and saline solutions, making them ideal for usage in chemical handling, pharmaceutical manufacturing, and marine applications where steel components would certainly wear away swiftly.
This inertness protects against contamination of sensitive media, a crucial factor in food handling, semiconductor fabrication, and biomedical equipment.
Unlike steel rounds, alumina does not create corrosion or metal ions, making certain process purity and lowering maintenance frequency.
Their non-magnetic nature even more prolongs applicability to MRI-compatible devices and electronic production line where magnetic interference should be prevented.
3.2 Wear Resistance and Long Life Span
In unpleasant or high-cycle settings, alumina ceramic spheres show wear rates orders of magnitude less than steel or polymer alternatives.
This extraordinary sturdiness equates into extensive solution intervals, decreased downtime, and lower overall price of possession in spite of greater first procurement prices.
They are widely utilized as grinding media in round mills for pigment diffusion, mineral handling, and nanomaterial synthesis, where their inertness stops contamination and their hardness guarantees reliable particle size reduction.
In mechanical seals and shutoff elements, alumina spheres preserve tight tolerances over numerous cycles, resisting erosion from particulate-laden fluids.
4. Industrial and Emerging Applications
4.1 Bearings, Shutoffs, and Fluid Handling Systems
Alumina ceramic spheres are essential to hybrid round bearings, where they are coupled with steel or silicon nitride races to integrate the low thickness and deterioration resistance of porcelains with the sturdiness of metals.
Their reduced thickness (~ 3.9 g/cm FOUR, concerning 40% lighter than steel) decreases centrifugal filling at high rotational speeds, allowing quicker operation with reduced heat generation and boosted power performance.
Such bearings are used in high-speed pins, oral handpieces, and aerospace systems where dependability under extreme problems is extremely important.
In liquid control applications, alumina spheres serve as check valve aspects in pumps and metering tools, specifically for hostile chemicals, high-purity water, or ultra-high vacuum cleaner systems.
Their smooth surface area and dimensional security guarantee repeatable sealing efficiency and resistance to galling or taking.
4.2 Biomedical, Power, and Advanced Modern Technology Utilizes
Past conventional commercial duties, alumina ceramic spheres are discovering usage in biomedical implants and diagnostic devices because of their biocompatibility and radiolucency.
They are used in fabricated joints and dental prosthetics where wear debris should be lessened to avoid inflammatory reactions.
In power systems, they operate as inert tracers in tank characterization or as heat-stable parts in concentrated solar energy and fuel cell settings up.
Research study is likewise exploring functionalized alumina balls for catalytic assistance, sensing unit aspects, and accuracy calibration requirements in assessment.
In recap, alumina ceramic balls exhibit just how advanced porcelains connect the gap in between architectural robustness and practical accuracy.
Their unique combination of firmness, chemical inertness, thermal stability, and dimensional precision makes them indispensable popular design systems throughout varied sectors.
As producing strategies continue to boost, their performance and application extent are anticipated to expand better right into next-generation innovations.
