1. Material Fundamentals and Architectural Characteristic
1.1 Crystal Chemistry and Polymorphism

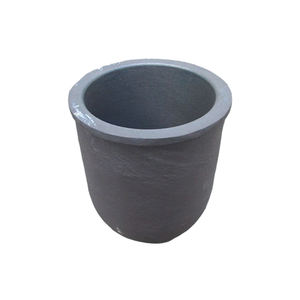

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms arranged in a tetrahedral latticework, creating among one of the most thermally and chemically durable products recognized.
It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal structures being most appropriate for high-temperature applications.
The solid Si– C bonds, with bond power surpassing 300 kJ/mol, confer exceptional solidity, thermal conductivity, and resistance to thermal shock and chemical strike.
In crucible applications, sintered or reaction-bonded SiC is chosen because of its ability to keep architectural integrity under extreme thermal slopes and corrosive molten environments.
Unlike oxide porcelains, SiC does not undertake turbulent phase shifts as much as its sublimation point (~ 2700 ° C), making it perfect for continual procedure above 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying characteristic of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which promotes uniform heat distribution and decreases thermal stress and anxiety during rapid home heating or cooling.
This property contrasts dramatically with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are vulnerable to fracturing under thermal shock.
SiC additionally exhibits outstanding mechanical strength at raised temperatures, maintaining over 80% of its room-temperature flexural strength (up to 400 MPa) even at 1400 ° C.
Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) further improves resistance to thermal shock, an essential factor in duplicated cycling between ambient and functional temperature levels.
Furthermore, SiC demonstrates exceptional wear and abrasion resistance, guaranteeing lengthy service life in atmospheres including mechanical handling or rough melt circulation.
2. Manufacturing Techniques and Microstructural Control

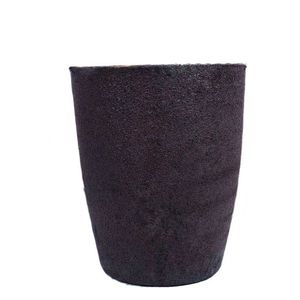

( Silicon Carbide Crucibles)
2.1 Sintering Techniques and Densification Methods
Industrial SiC crucibles are mainly made through pressureless sintering, response bonding, or warm pushing, each offering distinct benefits in cost, pureness, and efficiency.
Pressureless sintering includes condensing fine SiC powder with sintering aids such as boron and carbon, followed by high-temperature therapy (2000– 2200 ° C )in inert atmosphere to achieve near-theoretical density.
This technique returns high-purity, high-strength crucibles ideal for semiconductor and progressed alloy handling.
Reaction-bonded SiC (RBSC) is generated by penetrating a permeable carbon preform with molten silicon, which responds to create β-SiC sitting, resulting in a composite of SiC and recurring silicon.
While a little reduced in thermal conductivity due to metallic silicon additions, RBSC provides superb dimensional security and lower manufacturing expense, making it preferred for large industrial usage.
Hot-pressed SiC, though a lot more pricey, gives the greatest density and pureness, booked for ultra-demanding applications such as single-crystal growth.
2.2 Surface Area High Quality and Geometric Accuracy
Post-sintering machining, consisting of grinding and splashing, ensures accurate dimensional tolerances and smooth interior surface areas that minimize nucleation sites and decrease contamination threat.
Surface area roughness is meticulously managed to avoid thaw attachment and promote very easy launch of solidified products.
Crucible geometry– such as wall surface density, taper angle, and lower curvature– is enhanced to balance thermal mass, structural strength, and compatibility with heater heating elements.
Customized layouts suit specific melt quantities, home heating profiles, and material reactivity, making certain optimal efficiency across diverse industrial processes.
Advanced quality control, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic screening, verifies microstructural homogeneity and absence of defects like pores or cracks.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Hostile Atmospheres
SiC crucibles display outstanding resistance to chemical strike by molten metals, slags, and non-oxidizing salts, surpassing standard graphite and oxide porcelains.
They are stable in contact with molten aluminum, copper, silver, and their alloys, resisting wetting and dissolution as a result of low interfacial power and formation of safety surface area oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles avoid metal contamination that might degrade digital buildings.
However, under extremely oxidizing problems or in the existence of alkaline fluxes, SiC can oxidize to create silica (SiO TWO), which may react further to form low-melting-point silicates.
As a result, SiC is finest fit for neutral or reducing atmospheres, where its stability is made the most of.
3.2 Limitations and Compatibility Considerations
Regardless of its effectiveness, SiC is not generally inert; it responds with certain liquified materials, particularly iron-group steels (Fe, Ni, Co) at high temperatures with carburization and dissolution procedures.
In molten steel handling, SiC crucibles degrade quickly and are as a result prevented.
Similarly, antacids and alkaline planet steels (e.g., Li, Na, Ca) can decrease SiC, launching carbon and creating silicides, limiting their use in battery product synthesis or responsive metal casting.
For liquified glass and ceramics, SiC is typically suitable however might introduce trace silicon into extremely sensitive optical or electronic glasses.
Comprehending these material-specific interactions is essential for choosing the ideal crucible kind and making sure process purity and crucible longevity.
4. Industrial Applications and Technological Advancement
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are essential in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar cells, where they endure long term direct exposure to molten silicon at ~ 1420 ° C.
Their thermal security guarantees consistent formation and reduces misplacement density, directly influencing solar performance.
In foundries, SiC crucibles are made use of for melting non-ferrous steels such as light weight aluminum and brass, offering longer life span and decreased dross formation contrasted to clay-graphite choices.
They are additionally employed in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic compounds.
4.2 Future Patterns and Advanced Product Assimilation
Arising applications consist of the use of SiC crucibles in next-generation nuclear products testing and molten salt reactors, where their resistance to radiation and molten fluorides is being examined.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O ₃) are being applied to SiC surfaces to better enhance chemical inertness and stop silicon diffusion in ultra-high-purity processes.
Additive manufacturing of SiC components utilizing binder jetting or stereolithography is under development, appealing complicated geometries and fast prototyping for specialized crucible layouts.
As demand grows for energy-efficient, long lasting, and contamination-free high-temperature processing, silicon carbide crucibles will certainly stay a cornerstone innovation in innovative products producing.
In conclusion, silicon carbide crucibles represent an essential enabling component in high-temperature commercial and clinical procedures.
Their exceptional mix of thermal stability, mechanical strength, and chemical resistance makes them the product of choice for applications where efficiency and integrity are extremely important.
