1. Chemical Structure and Molecular Device
1.1 Synthesis and Molecular Architecture

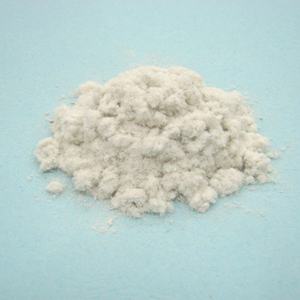

(Naphthalene Sulfonate Superplasticizer)
Naphthalene sulfonate formaldehyde condensate (NSF), commonly called naphthalene sulfonate superplasticizer, is an artificial water-reducing admixture commonly used in high-performance concrete to improve flowability without jeopardizing architectural honesty.
It is generated through a multi-step chemical process entailing the sulfonation of naphthalene with concentrated sulfuric acid to create naphthalene sulfonic acid, followed by formaldehyde condensation under controlled temperature level and pH problems to produce a polymer with duplicating fragrant units linked by methylene bridges.
The resulting particle features a hydrophobic naphthalene backbone and several hydrophilic sulfonate (-SO FIVE ⁻) groups, producing a comb-like polyelectrolyte structure that allows solid interaction with concrete fragments in liquid environments.
This amphiphilic style is main to its dispersing function, permitting the polymer to adsorb onto the surface of cement hydrates and pass on electrostatic repulsion in between fragments.
The level of sulfonation and polymerization can be readjusted during synthesis to tailor the molecular weight and charge thickness, directly influencing dispersion efficiency and compatibility with different cement types.
1.2 Dispersion System in Cementitious Solutions
When contributed to fresh concrete, NSF functions mostly via electrostatic repulsion, a system distinct from steric obstacle used by newer polycarboxylate-based superplasticizers.
Upon blending, the hydrophobic naphthalene rings adsorb onto the positively charged sites of tricalcium silicate (C ₃ S) and various other concrete stages, while the adversely charged sulfonate groups extend into the pore remedy, producing a strong adverse surface possibility.
This produces an electric double layer around each cement fragment, creating them to push back one another and counteracting the all-natural propensity of great fragments to flocculate due to van der Waals pressures.
Consequently, the entrapped water within flocs is launched, raising the fluidity of the mix and enabling substantial decreases in water web content– usually 15– 25%– while maintaining workability.
This enhanced dispersion causes a more uniform microstructure, reduced porosity, and boosted mechanical strength development over time.
Nevertheless, the effectiveness of NSF decreases with prolonged blending or heats due to desorption and downturn loss, a limitation that influences its application in long-haul transport or warm climates.

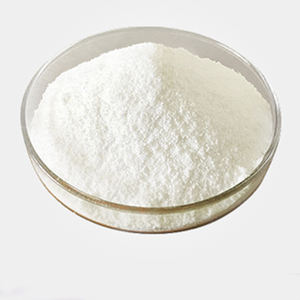

( Naphthalene Sulfonate Superplasticizer)
2. Efficiency Characteristics and Design Conveniences
2.1 Workability and Circulation Enhancement
One of the most immediate benefits of naphthalene sulfonate superplasticizer is its capacity to substantially boost the downturn of concrete, making it very flowable and very easy to location, pump, and combine, especially in largely enhanced frameworks.
This improved workability allows for the building and construction of intricate building kinds and minimizes the requirement for mechanical vibration, decreasing labor expenses and the risk of honeycombing or spaces.
NSF is particularly efficient in generating self-consolidating concrete (SCC) when used in mix with viscosity-modifying representatives and other admixtures, ensuring full mold and mildew filling without segregation.
The degree of fluidness gain depends upon dose, usually ranging from 0.5% to 2.0% by weight of cement, past which reducing returns and even retardation may occur.
Unlike some natural plasticizers, NSF does not present excessive air entrainment, protecting the thickness and sturdiness of the end product.
2.2 Stamina and Sturdiness Improvements
By making it possible for lower water-to-cement (w/c) proportions, NSF plays a crucial duty in boosting both very early and lasting compressive and flexural toughness of concrete.
A reduced w/c proportion lowers capillary porosity, resulting in a denser, much less permeable matrix that withstands the access of chlorides, sulfates, and dampness– essential consider stopping support corrosion and sulfate attack.
This enhanced impermeability extends service life in aggressive environments such as aquatic structures, bridges, and wastewater therapy facilities.
In addition, the uniform diffusion of concrete particles promotes more total hydration, increasing toughness gain and reducing shrinkage fracturing threats.
Researches have shown that concrete incorporating NSF can attain 20– 40% higher compressive strength at 28 days compared to control mixes, relying on mix style and treating conditions.
3. Compatibility and Application Factors To Consider
3.1 Communication with Concrete and Supplementary Products
The performance of naphthalene sulfonate superplasticizer can vary significantly depending on the composition of the cement, particularly the C FIVE A (tricalcium aluminate) web content and antacid levels.
Cements with high C FIVE An often tend to adsorb more NSF due to stronger electrostatic communications, possibly needing greater dosages to achieve the preferred fluidity.
Similarly, the existence of supplemental cementitious products (SCMs) such as fly ash, slag, or silica fume impacts adsorption kinetics and rheological habits; for instance, fly ash can compete for adsorption sites, modifying the reliable dosage.
Blending NSF with various other admixtures like retarders, accelerators, or air-entraining agents calls for careful compatibility screening to stay clear of damaging interactions such as rapid slump loss or flash set.
Batching sequence– whether NSF is added previously, throughout, or after mixing– likewise affects dispersion performance and have to be standard in large procedures.
3.2 Environmental and Handling Aspects
NSF is offered in liquid and powder forms, with fluid solutions supplying simpler application and faster dissolution in mixing water.
While generally stable under typical storage problems, prolonged exposure to freezing temperatures can create rainfall, and high warmth might break down the polymer chains with time.
From an ecological point ofview, NSF is thought about reduced toxicity and non-corrosive, though appropriate handling techniques should be followed to prevent breathing of powder or skin irritability.
Its manufacturing involves petrochemical by-products and formaldehyde, elevating sustainability worries that have driven research right into bio-based choices and greener synthesis courses.
4. Industrial Applications and Future Expectation
4.1 Usage in Precast, Ready-Mix, and High-Strength Concrete
Naphthalene sulfonate superplasticizer is thoroughly made use of in precast concrete production, where specific control over setup time, surface area finish, and dimensional precision is necessary.
In ready-mixed concrete, it enables long-distance transport without sacrificing workability upon arrival at building websites.
It is likewise an essential part in high-strength concrete (HSC) and ultra-high-performance concrete (UHPC), where exceptionally reduced w/c proportions are needed to attain compressive staminas going beyond 100 MPa.
Tunnel cellular linings, high-rise buildings, and prestressed concrete aspects take advantage of the enhanced toughness and architectural performance given by NSF-modified mixes.
4.2 Trends and Difficulties in Admixture Technology
In spite of the introduction of more advanced polycarboxylate ether (PCE) superplasticizers with remarkable downturn retention and lower dose requirements, NSF remains extensively made use of as a result of its cost-effectiveness and tried and tested performance.
Continuous research focuses on crossbreed systems combining NSF with PCEs or nanomaterials to enhance rheology and stamina growth.
Initiatives to improve biodegradability, minimize formaldehyde emissions during manufacturing, and enhance compatibility with low-carbon cements show the sector’s shift toward lasting building and construction materials.
Finally, naphthalene sulfonate superplasticizer represents a foundation innovation in modern-day concrete design, connecting the gap in between standard practices and progressed product performance.
Its capacity to transform concrete into a highly practical yet durable composite continues to support worldwide framework growth, even as next-generation admixtures advance.
