1. Principles of Foam Generation and the Duty in Lightweight Concrete Systems
1.1 Concepts of Air Entrainment and Mobile Framework Formation

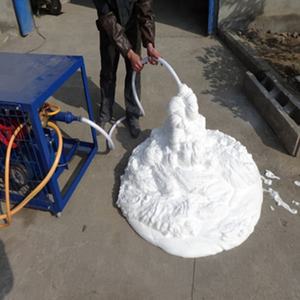

(Lightweight Concrete Foam Generators)
Light-weight concrete, a course of building materials characterized by minimized thickness and boosted thermal insulation, counts essentially on the controlled introduction of air or gas gaps within a cementitious matrix– a process known as foaming.
The development of these consistently dispersed, steady air cells is attained with making use of a specialized gadget called a foam generator, which produces penalty, microscale bubbles that are ultimately blended right into the concrete slurry.
These bubbles, commonly varying from 50 to 500 micrometers in size, come to be permanently entrained upon concrete hydration, leading to a cellular concrete framework with dramatically reduced system weight– usually between 300 kg/m four and 1,800 kg/m TWO– contrasted to traditional concrete (~ 2,400 kg/m THREE).
The foam generator is not just a complementary tool yet a crucial design element that identifies the high quality, consistency, and performance of the final light-weight concrete product.
The process starts with a liquid foaming representative, usually a protein-based or artificial surfactant remedy, which is introduced right into the generator where it is mechanically or pneumatically dispersed right into a dense foam through high shear or pressed air shot.
The security and bubble dimension circulation of the generated foam straight influence crucial product buildings such as compressive strength, thermal conductivity, and workability.
1.2 Category and Functional Devices of Foam Generators
Foam generators are generally categorized right into 3 primary types based on their functional concepts: low-pressure (or wet-film), high-pressure (or vibrant), and rotary (or centrifugal) systems.
Low-pressure generators utilize a permeable tool– such as a great mesh, material, or ceramic plate– through which pressed air is required, developing bubbles as the foaming solution flows over the surface.
This technique generates relatively huge, less uniform bubbles and is generally made use of for lower-grade applications where precise control is much less crucial.
High-pressure systems, in contrast, utilize a nozzle-based layout where a high-velocity stream of pressed air shears the lathering liquid right into a fine, homogeneous foam with slim bubble dimension distribution.
These systems use exceptional control over foam thickness and security, making them excellent for structural-grade light-weight concrete and precast applications.

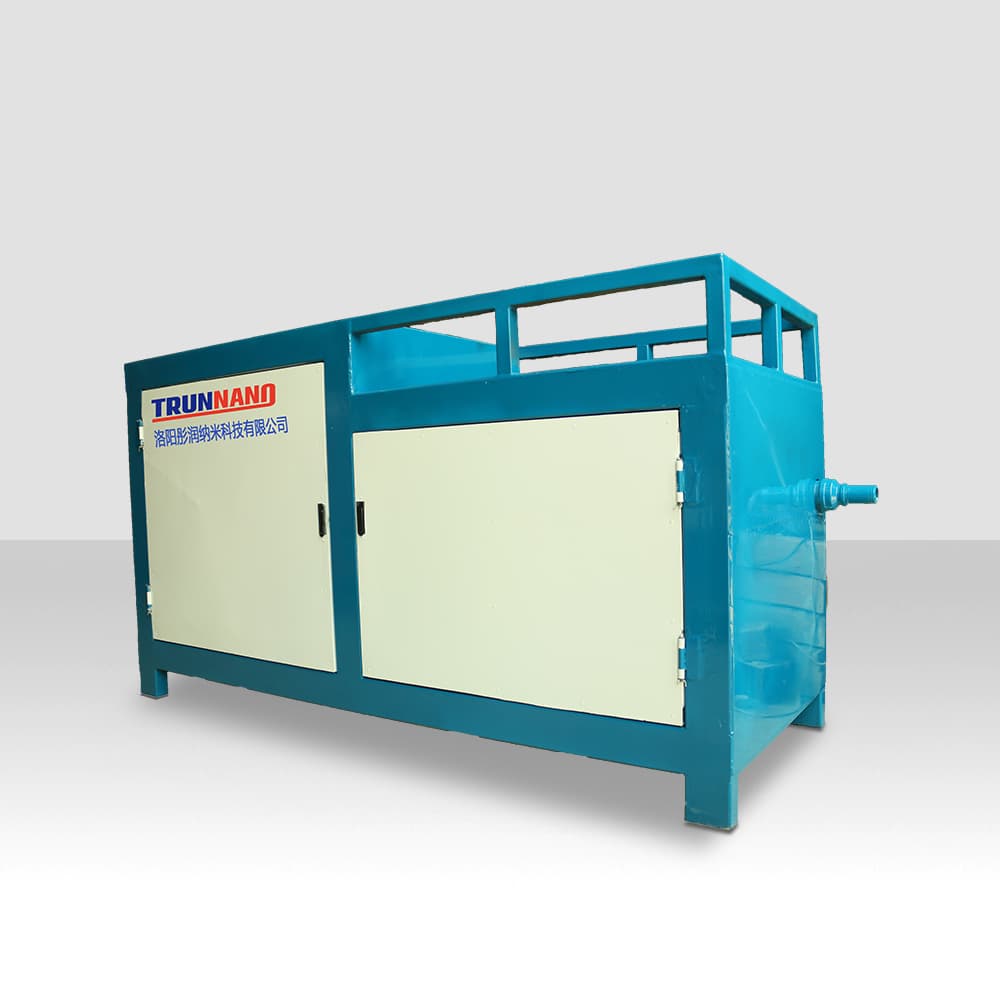

( Lightweight Concrete Foam Generators)
Rotating foam generators use a spinning disk or drum that flings the frothing option right into a stream of air, producing bubbles via mechanical diffusion.
While less specific than high-pressure systems, rotary generators are valued for their robustness, convenience of maintenance, and constant result, suitable for massive on-site pouring procedures.
The option of foam generator kind depends on project-specific requirements, consisting of wanted concrete density, manufacturing volume, and performance specifications.
2. Product Scientific Research Behind Foam Stability and Concrete Performance
2.1 Foaming Representatives and Interfacial Chemistry
The efficiency of a foam generator is fundamentally connected to the chemical make-up and physical habits of the frothing representative.
Lathering representatives are surfactants that minimize the surface area stress of water, making it possible for the formation of steady air-liquid user interfaces.
Protein-based representatives, originated from hydrolyzed keratin or albumin, create long lasting, flexible foam films with superb security and are frequently liked in architectural applications.
Synthetic agents, such as alkyl sulfonates or ethoxylated alcohols, provide faster foam generation and lower cost however may produce less stable bubbles under extended mixing or adverse ecological conditions.
The molecular structure of the surfactant establishes the thickness and mechanical strength of the lamellae (slim fluid films) surrounding each bubble, which must stand up to coalescence and drainage during mixing and curing.
Additives such as viscosity modifiers, stabilizers, and pH buffers are frequently included right into frothing solutions to boost foam perseverance and compatibility with cement chemistry.
2.2 Influence of Foam Characteristics on Concrete Properties
The physical attributes of the created foam– bubble size, size circulation, air material, and foam thickness– directly determine the macroscopic habits of light-weight concrete.
Smaller sized, uniformly distributed bubbles boost mechanical toughness by minimizing stress focus points and developing a more uniform microstructure.
On the other hand, larger or irregular bubbles can serve as flaws, reducing compressive strength and boosting leaks in the structure.
Foam stability is equally crucial; early collapse or coalescence during mixing cause non-uniform thickness, partition, and minimized insulation efficiency.
The air-void system also affects thermal conductivity, with finer, closed-cell frameworks giving remarkable insulation as a result of trapped air’s reduced thermal diffusivity.
Additionally, the water material of the foam influences the water-cement ratio of the last mix, requiring precise calibration to stay clear of weakening the cement matrix or delaying hydration.
Advanced foam generators now include real-time surveillance and feedback systems to keep consistent foam output, making sure reproducibility across batches.
3. Assimilation in Modern Building And Construction and Industrial Applications
3.1 Architectural and Non-Structural Uses Foamed Concrete
Lightweight concrete produced by means of foam generators is utilized throughout a broad range of construction applications, varying from insulation panels and void filling up to bearing walls and pavement systems.
In building envelopes, lathered concrete supplies outstanding thermal and acoustic insulation, contributing to energy-efficient designs and reduced cooling and heating loads.
Its reduced density also lowers structural dead lots, permitting smaller sized foundations and longer spans in high-rise and bridge building and construction.
In civil design, it is made use of for trench backfilling, tunneling, and incline stabilization, where its self-leveling and low-stress attributes protect against ground disruption and boost security.
Precast makers use high-precision foam generators to produce light-weight blocks, panels, and architectural aspects with limited dimensional resistances and constant top quality.
Additionally, foamed concrete exhibits intrinsic fire resistance because of its low thermal conductivity and absence of organic elements, making it suitable for fire-rated settings up and passive fire defense systems.
3.2 Automation, Scalability, and On-Site Manufacturing Solutions
Modern construction needs rapid, scalable, and trusted manufacturing of lightweight concrete, driving the assimilation of foam generators right into automated batching and pumping systems.
Completely automated plants can integrate foam generation with cement mixing, water application, and additive injection, enabling constant manufacturing with marginal human intervention.
Mobile foam generator systems are increasingly deployed on building sites, enabling on-demand fabrication of foamed concrete straight at the point of usage, decreasing transportation costs and product waste.
These systems are frequently geared up with electronic controls, remote surveillance, and data logging capabilities to ensure conformity with design specs and quality criteria.
The scalability of foam generation technology– from small portable systems to industrial-scale systems– supports its fostering in both created and emerging markets, advertising lasting building methods globally.
4. Technical Improvements and Future Directions in Foam Generation
4.1 Smart Foam Generators and Real-Time Process Control
Emerging developments in foam generator layout concentrate on improving precision, performance, and flexibility via digitalization and sensor combination.
Smart foam generators equipped with pressure sensors, circulation meters, and optical bubble analyzers can dynamically adjust air-to-liquid proportions and monitor foam top quality in genuine time.
Artificial intelligence algorithms are being checked out to predict foam habits based on environmental problems, resources variants, and historical efficiency information.
Such improvements aim to lessen batch-to-batch variability and optimize product performance, particularly in high-stakes applications like nuclear shielding or overseas building.
4.2 Sustainability, Environmental Effect, and Environment-friendly Product Integration
As the construction industry moves toward decarbonization, foam generators play a role in decreasing the ecological footprint of concrete.
By lowering product density, less cement is required per unit quantity, straight lowering CO two exhausts connected with concrete production.
Additionally, frothed concrete can incorporate additional cementitious products (SCMs) such as fly ash, slag, or silica fume, boosting sustainability without jeopardizing performance.
Study is additionally underway to establish bio-based foaming agents stemmed from renewable resources, minimizing dependence on petrochemical surfactants.
Future developments may include energy-efficient foam generation approaches, combination with carbon capture modern technologies, and recyclable concrete formulas made it possible for by stable mobile structures.
In conclusion, the lightweight concrete foam generator is much more than a mechanical device– it is a pivotal enabler of innovative product engineering in modern construction.
By precisely managing the architecture of air voids at the microscale, it transforms standard concrete right into a multifunctional, lasting, and high-performance material.
As innovation advances, foam generators will remain to drive innovation in structure science, framework durability, and ecological stewardship.
